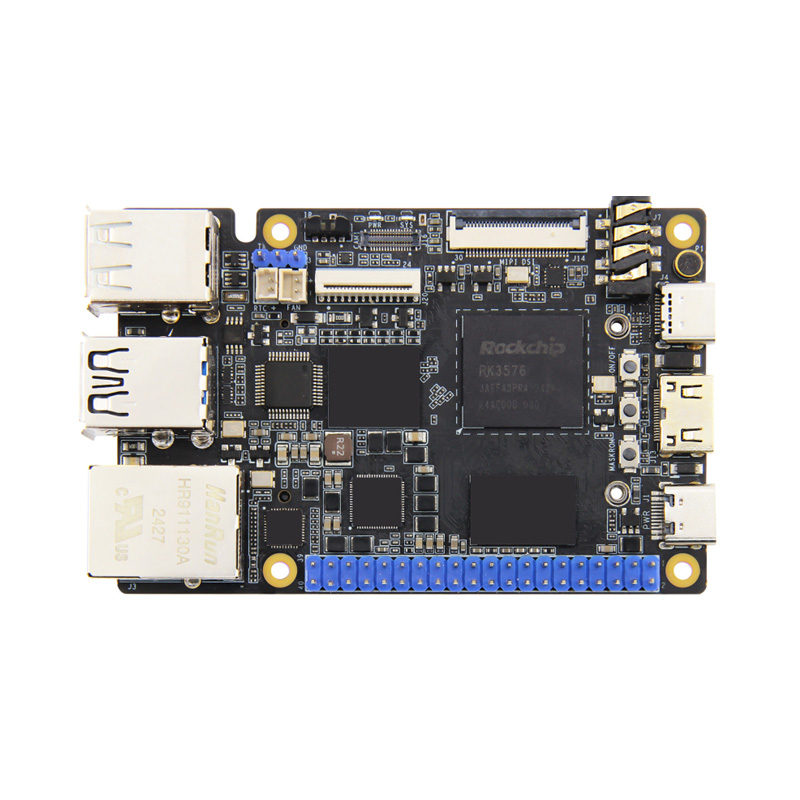

RK3576 Motherboard Introduction

• The TP-3 rk3576 board has powerful performance and can be used as a high-performance single-board computer and embedded motherboard for display, control, network transmission, file storage, edge computing and other scenarios.
• Using Rockchip RK3576 as the main chip, the main frequency can reach up to 2.2GHz, integrating quad-core 642-bit Cortex-A72 and quad-core 64-bit Cortex-A53, a total of eight-core processors and ARM Mail-G52 MC3GPU, supporting 8K video decoding and 4K display output, super image processing capabilities, supporting multi-camera input, supporting multi-screen display, built-in independent NPU, enabling various AI scenarios.
• Provide a variety of memory and storage combinations to choose from, balanced onboard hardware configuration, and a wide range of applications. 24
• The built-in independent NPU computing power can reach 6TOPS, enabling various AI scenarios.
• It has high integration and rich expansion interfaces, including Gigabit Ethernet port, RGMI, USB3.0, USB2.0, MiniPCle, MiniHDMI, MIPI screen interface and MIPI camera interface, audio interface, infrared receiver, SIM/TF card holder and other peripherals, and leads to 40 unused pins, which are compatible with Raspberry Pi interface.
• It officially supports mainstream Android, Debain, and Ubuntu operating system images, and can be applied to more than 8 different application environments.
• It is completely open source, provides official tutorials, and provides complete SDK driver development kits, design schematics and other resources, which can be easily used.

RK3576 development Feature

• Supports multiple operating systems, whether it is development or entertainment, it can be easily satisfied!: Ubuntu/Debian Android/Robot operating system

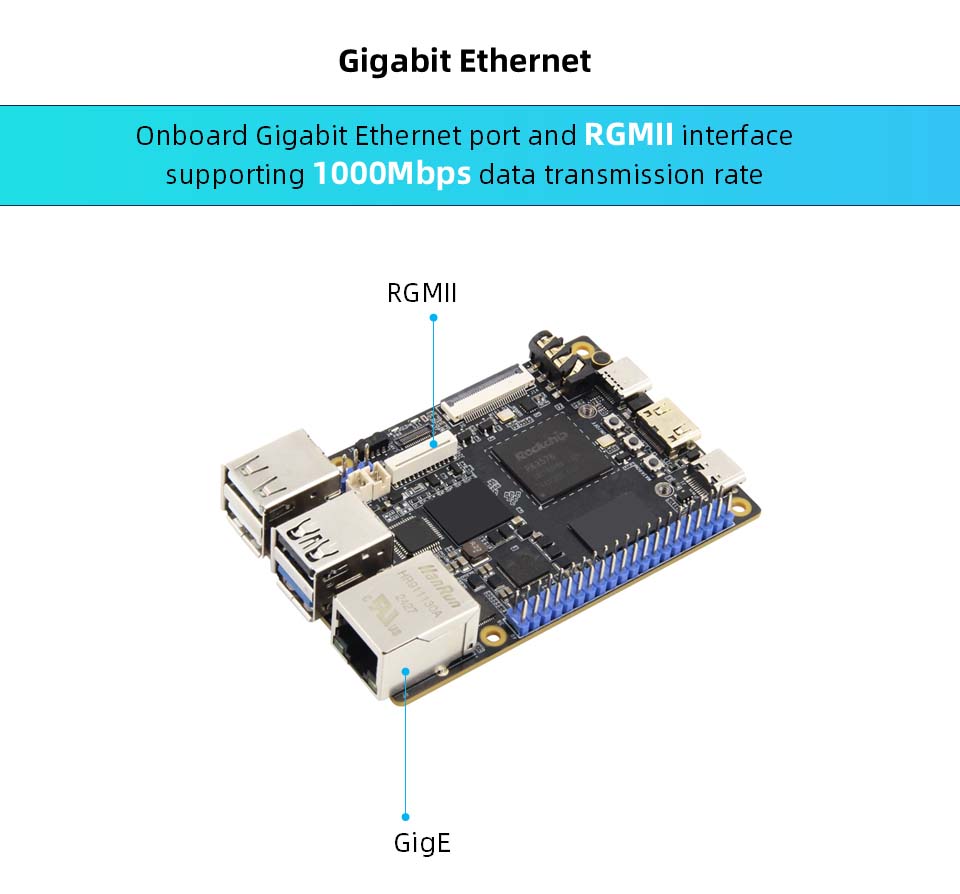

• Onboard Gigabit Ethernet port and RGMII interface, support 1000Mbps data transmission rate
• Built-in independent NPU, computing power can reach 6TOPS, adopts three-core architecture, supports int4/int8/int16/FP16/BF16/TF32, empowers various AI scenarios
• Supports up to 8K@30 frames H.264/H.265/VP9/AV2/AVS2 video decoding and 4K@60 frames H.264/H.265 video encoding

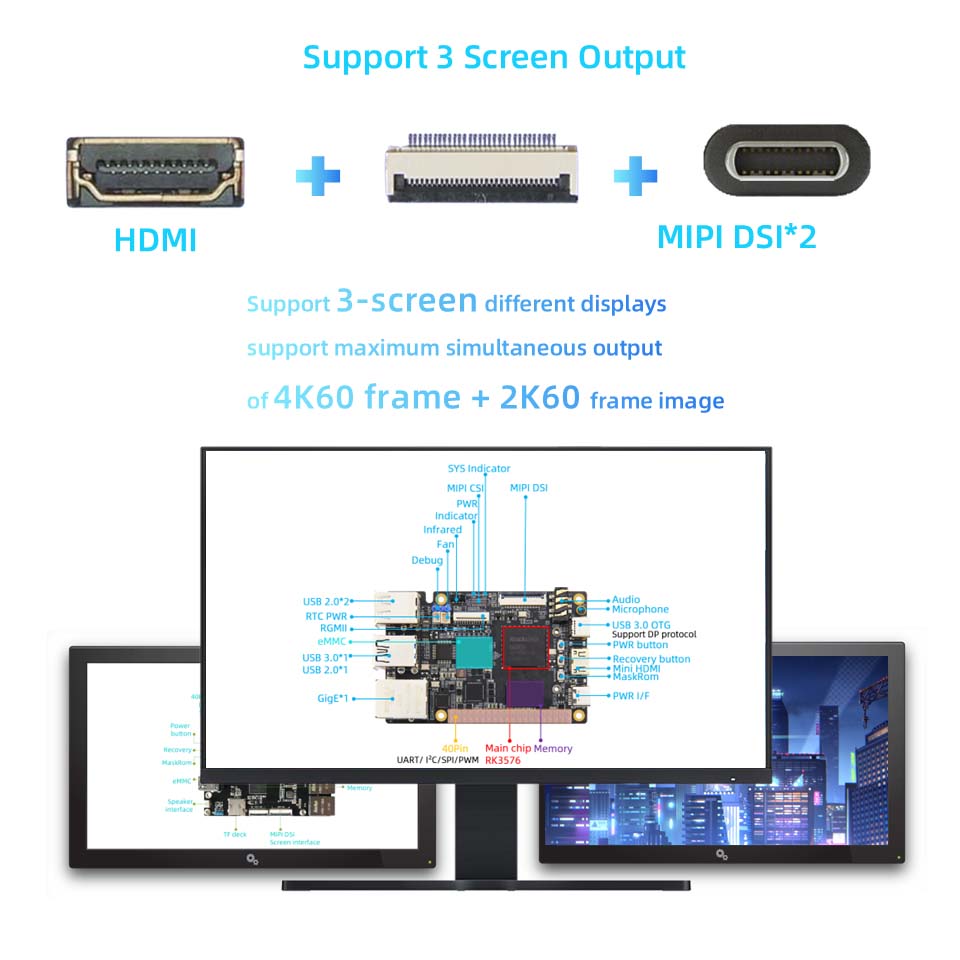

• Supports three-screen display, supports up to 4K@120 frames + 2K@60 frames + 1080P@60 frames at the same time

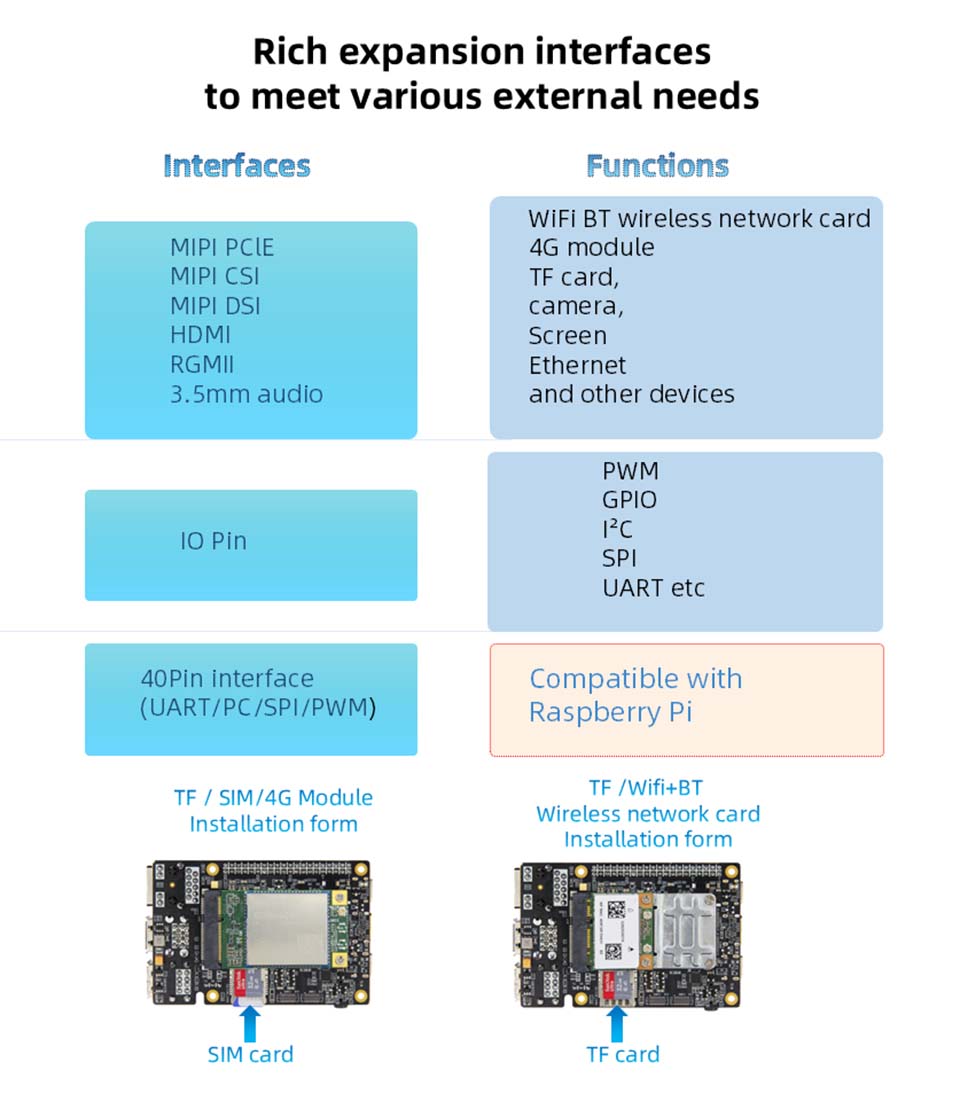

• Rich expansion interface

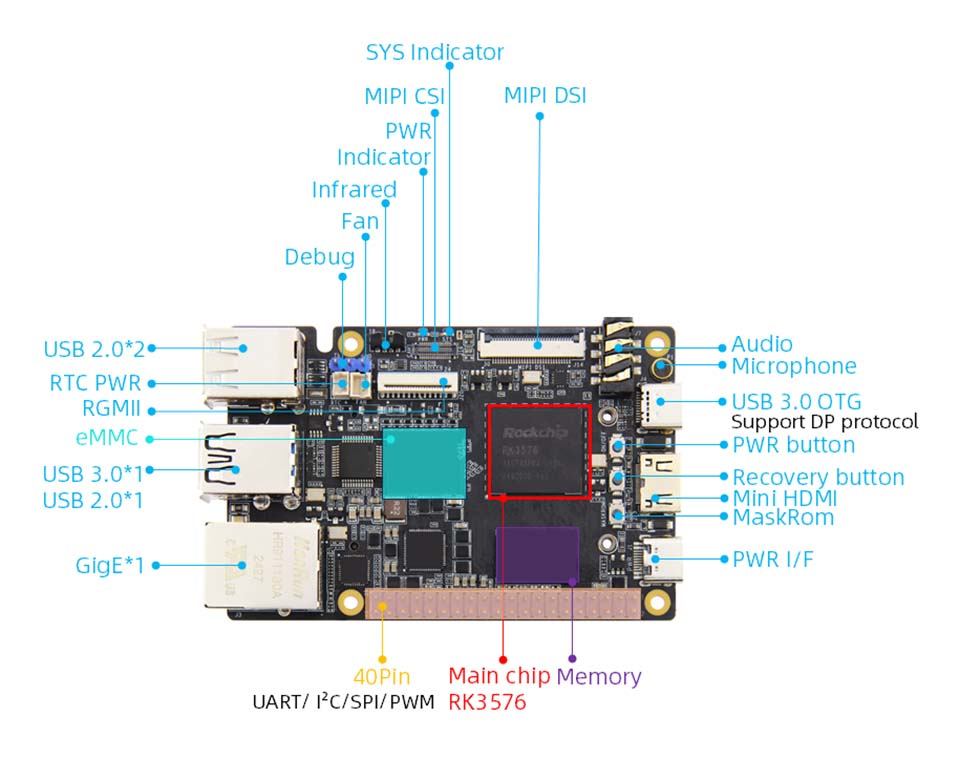

RK3576 Board Hardware configuration

• Power interface: 5V@4A DC input, Type-C interface (no data transmission capability)
• Main chip: RK3576 (quad-core A72 + quad-core A53, Mali-G52 MC3, 6T computing power)
• Memory: 2/4/8GB, LPDDR4X (other storage requirements can be customized)
• Storage: 0/32/64GB, eMMC (other storage requirements can be customized)
• Ethernet: Gigabit network port*1, supports 10/100/1000Mbps data transmission rate; RGMI interface*1, supports 10/100/1000Mbps data transmission rate, can be connected to our RGMII Gigabit Ethernet module
• HDMI: HDMI2.1 output*1, supports multi-screen display with other screens, maximum resolution 4K@120fps
• MIPI-DSI: MIPI screen interface * 1, can be plugged into Wildfire MIPI screen, supports multiple screens with other screens, single MIPI mode with the highest resolution of 2560 * 1600 @ 60fps

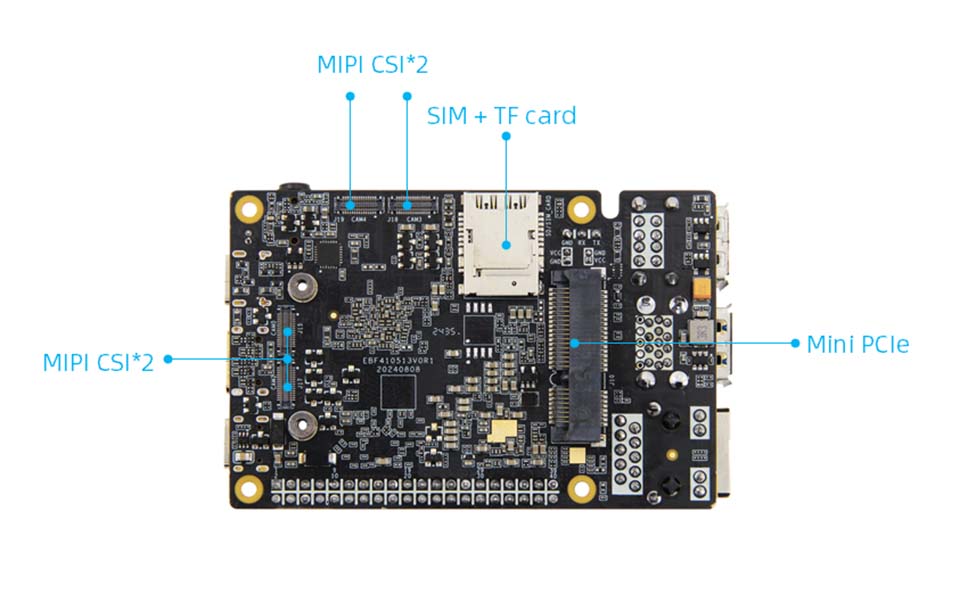

• MIPI-CSI: 2 * 15Pin BTB camera interface * 5 (front * 1, back * 4), can be plugged into our MIPI camera
• USB2.0: Type-A interface * 3 (HOST)
• USB3.0: Type-A interface * 1 (HOST); Type-C interface * 1 (OTG), for firmware burning interface, supports DP protocol, can be used with other screens
• PCle interface: Mini-PCle interface, can be used with full-height or half-height WIFI network card, 4G module or other Mini-PCle interface module
• SIM+TF card holder: can insert SIM card and Micro SD (TF) card at the same time, support TF card to start the system, up to 512GB, SIM card function needs to be used with 4G module
• 40Pin interface: Compatible with Raspberry Pi 40Pin interface, supports PWM/GPIO/C/SPI/UART functions
• Debug serial port: default parameter 1500000-8-N-1
• Audio: MICIN*1, capacitor microphone; headphone output + microphone input 2-in-1 interface*1
• Buttons: Power button*1; MaskRom button*1; Recovery button*1
• LED: Power indicator*1; System indicator*1
• Infrared receiver: Supports infrared remote control function
• RTC: RTC power socket*1

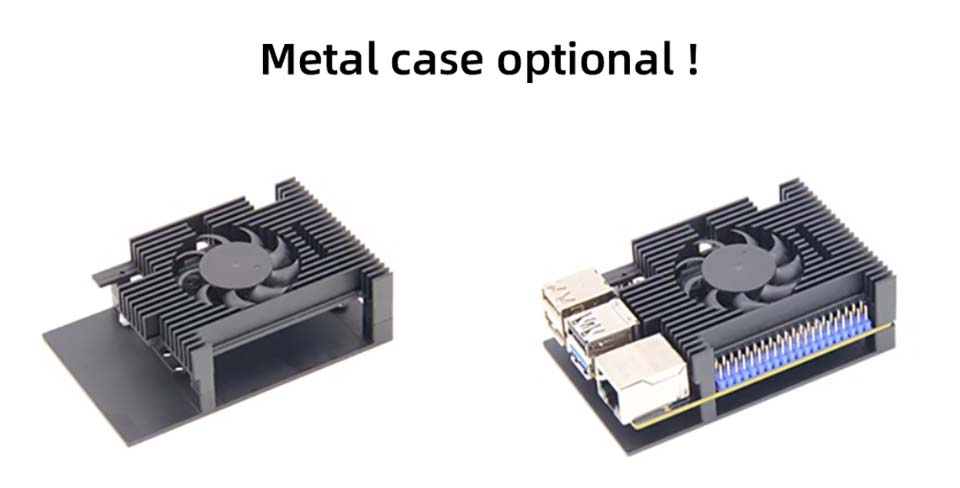

• Fan interface: Supports installation of 5V fan for cooling

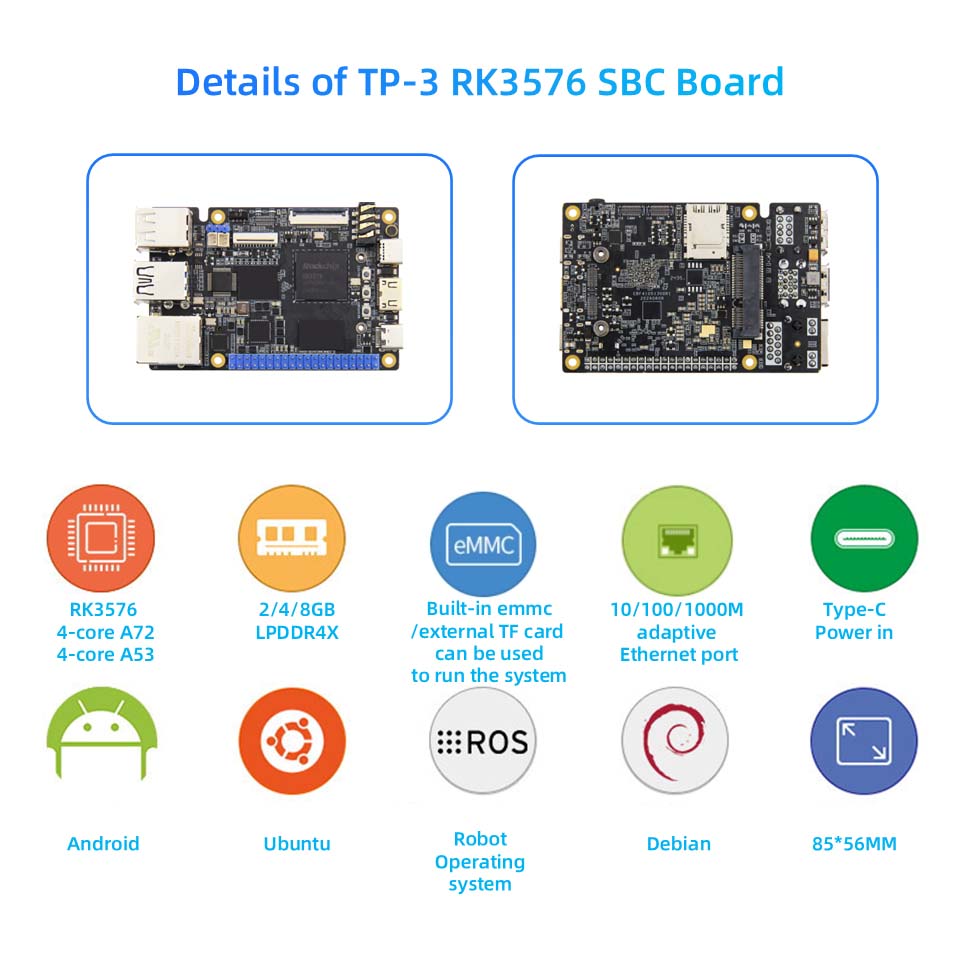

Other Parameters of this RK3576 Board

System: Android 14, Ubuntu, Debian

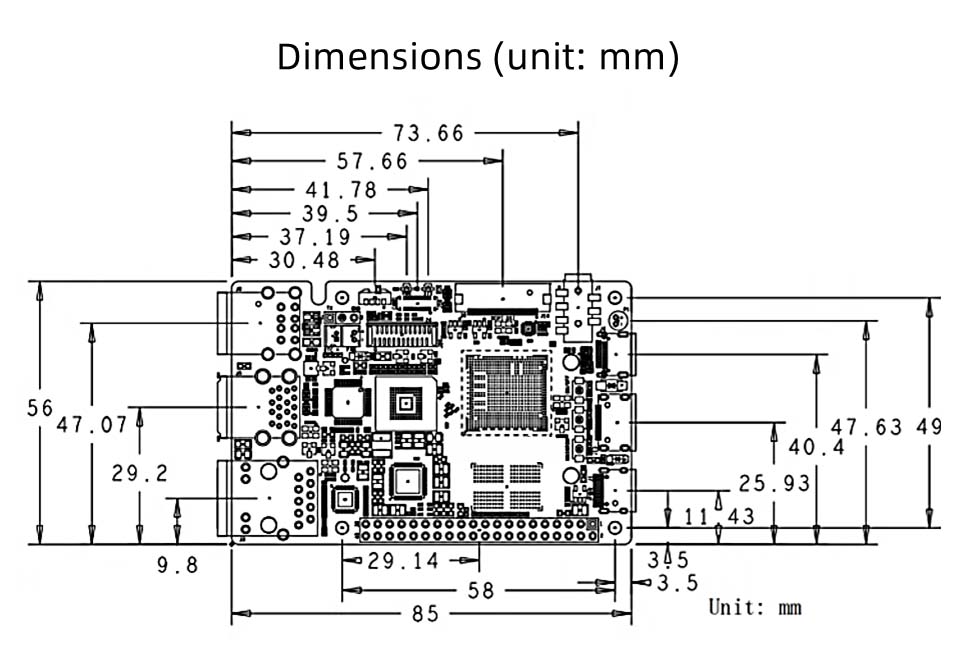

Size: 85*56MM
